Product Introduction
The detector generates a high DC voltage that is applied to the coating surface through a probe. The detector is connected to the substrate via the high voltage returned. When the probe is passed over a coating flaw, then the electrical circuit is completed and current flows from the probe to the substrate. As a result, audible and visual alarms are activated in the detector and a spark may be produced at the flaw.
Function
D1 Porosity Holiday detector is a special testing equipment used to detect oil and gas pipelines, cables, enamel, metal tank, hull and other protective coatings flaws. It is a simple and practical equipment.
Characteristic
1. Low power consumption, small size, light weight；
2. Simple operation；
Main Parameter
1. Measuring range:A:0.03-3.5mm（Epoxy coal tar pitch medium）
B:3.5-10.mm（Petroleum asphalt medium）
C:0.03-10.mm（Epoxy coal tar pitch、Petroleum asphalt medium）
3. Output high voltage:A:0.5-15KV
B:15-35KV
C:0.5-35KV
4. Display:pointer
5. High voltage control system:Ordinary potentiometer adjustment
6. DC supply:12v
7. Consumption:＜5w
8. Alarm delay:1-2s
9. High voltage probe:Electronic high voltage generator
10. Packing:metal chest
11. Main dimension: 165mm×155mm×68mm
12. Weight:1.5kg（Including battery）

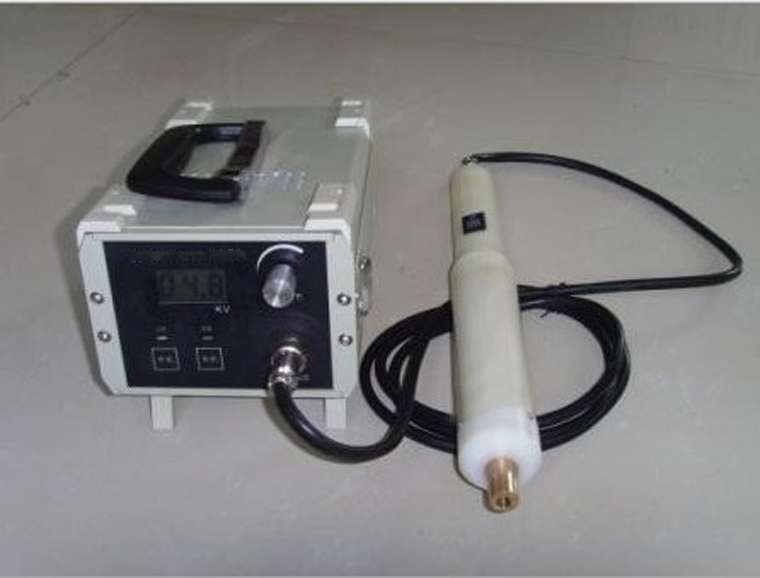

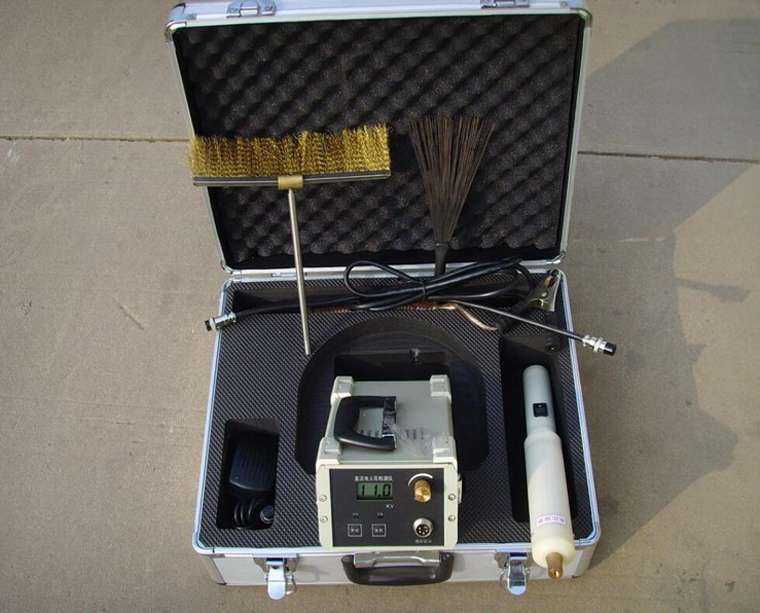

Figure Photos
