Introduction of Portable Colorimeter Tintometer
The Portable Colorimeter Tintometer is applicable in textile, printing and dyeing, clothing, footwear, leather, chemicals, plastics, plastics,pigments, paints, inks, printing, metal, photography, toys, and other industry color quality control, color control, color analysis, sample testing, production line testing, also suitable for injection molding, ink, paint, spray and other auxiliary color.
WF32 Portable Colorimeter Tintometer with more light, more color difference formula to meet customer demand for more measurements.
● High-end color difference meter WF32 to fill the gaps in the field of color difference meter high repeat accuracy, repeatability of Δ<0.03;
● High-end color difference meter WF32 with 8 standard light source, to fill gaps in the domestic color difference meter in the multiple light sources;
● High-end color difference meter WF32 with 8 kinds of color difference formula, to fill the domestic blank color difference evaluation in various ways;
● High-end color difference meter WF32 the exclusive release color simulation function.
WAVE photoelectric colorimeter as manufacturers with advanced technology, WF series of color difference meter
has more advantages:
1. The stability (repeatability) of the color space measurement of unique technology, WF32 domestic optimal repetitive precision of ΔE<0.03;
2. The measuring speed is the fastest, the measurement time is 0.5s;
3. Automatic correction of patent technology built-in whiteboard unique, both to ensure the precision of the instrument,but also simplifies the operation of users, allows users to experience the real "make measurement easier";
4. Cone measurement using port design, both for the convenience of visual positioning, and can measure the sunken surface;
5. The most intuitive, fast, simple operation interface in the domestic color difference meter: the interface design page type, graphical, a school will be, easy to use.
WF32 color difference meter caliber 4mm version is a specially designed, high performance precision colorimeter is especially suitable for small area, such as the special surface measurement. In the color quality detection of small devices,small parts, special type of arc to bring great convenience for the user.
For example:
● 20mm diameter rod plastic product color detection;
● Senior glass surface color detection;
● Ceramic device with convex, concave security facilities;
● The above products color detection in WF32 version of the 4mm help, easily, quickly.
Main Parameter of Portable Colorimeter Tintometer
|
Model
|
WF32
|
|
Display Mode
|
CIELAB,CIELCH,CIEXYZ,CIELUV,HunterLAB,sRGB
|
|
Color Difference Formula
|
Δ E*ab, Δ ECMC, Δ EISO, Δ ECIE94, Δ EFCMⅡ, Δ ELuv,
Δ Ehunter, Δ EsRGB
|
|
Yellowness and Whiteness
|
Ganci whiteness, ISO brightness, YI yellowness
|
|
Illumination Condition
|
CIE Recommendation:8/d
|
|
Light Source
|
LED blue excitation
|
|
Sensor
|
Photodiode array
|
|
Measurement Caliber
|
φ4mm/φ8mm/φ16mm Alternative
|
|
Measurement Condition
|
Observer:CIE 10° Standard observer
Light source:A C D50 D65 F2(CWF) F7 F11(TL84) F12(U30)
Contain light way:SCI SCE
|
|
Measurement Range
|
L: 0 to 100
|
|
Repeated Accuracy
|
Δ E<0.03 (take the deviation average after 30 times measuring
the whiteboard)
|
|
Table Difference
|
Δ E<0.2
|
|
Measurement Interval
|
0.5 Sec.
|
|
Average Measuring Function
|
Average measuring frequency: 1-32 times
|
|
Color Simulation Function
|
yes
|
|
Storage Capacity
|
Type sample data : 100 with testing sample data: 20000
Whiteness/yellowness data: 200
|
|
Language Patterns
|
English/Simplified Chinese/Traditional Chinese
|
|
Quality Control Software
|
Color-Analysis System software
|
|
Battery Charging Time
|
8 hrs
|
|
Battery
|
Li-ion battery, 5000 times Measurement
|
|
Lifetime of Bulb
|
5 years more than 1.6 million measurements
|
|
Display Screen
|
TFT true color 2.8inch@(16:9) Resolution ratio:400x240
|
|
Interface of External
|
USB2.0 (USB-B type)- data communication with color analysis
system software RS-232 (115200bps)- connected with micro printer
|
|
Working Temperature Range
|
0℃-40℃(32℉-104℉)
|
|
Storage Temperature Range
|
-20℃-50℃(-4℉-122℉)
|
|
Humidity Range
|
Relative humidity less than 85%,without condensation
|
|
Weight
|
700g
|
|
Size
|
199*68*90mm
|
|
Size of Exterior Package
|
400*240*340mm
|
|
Standard Accessories
|
Standard whiteboard/Standard black cavity/3000mAH Li-ion battery/AC adapter/USB Data line/CD Color analysis
software/User manual/Warranty card
|
|
Optional Accessories
|
Flour measuring device/Liquid measuring device/Micro printer
|

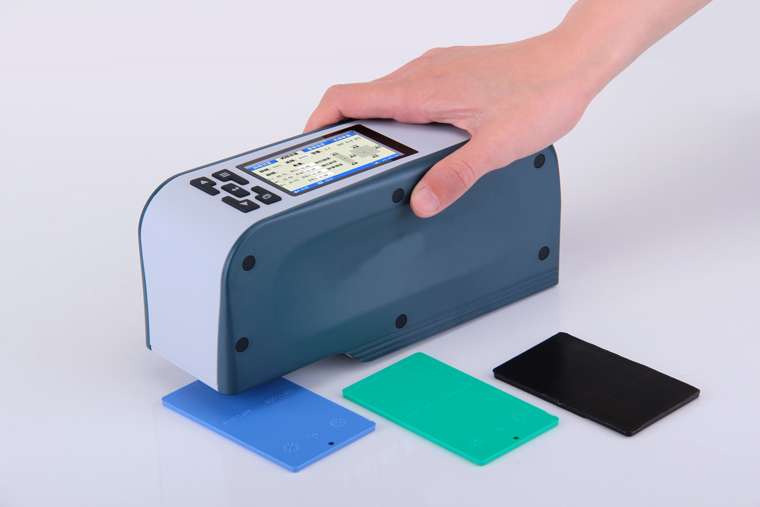

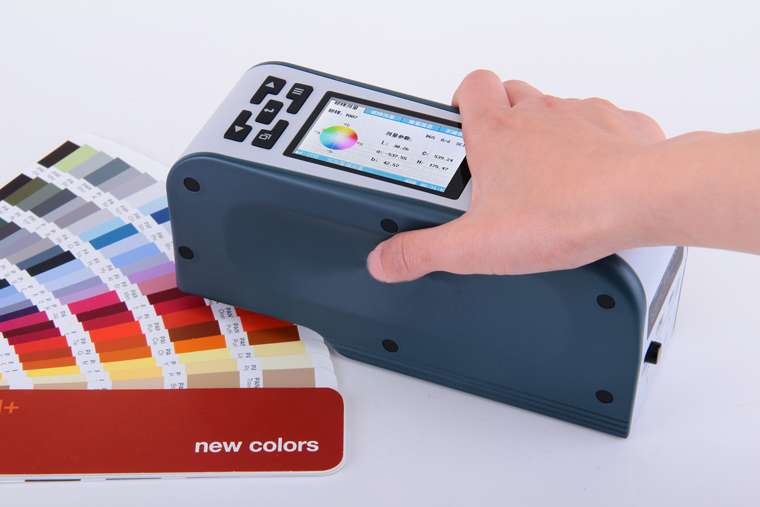

Figure Photos of Portable Colorimeter Tintometer

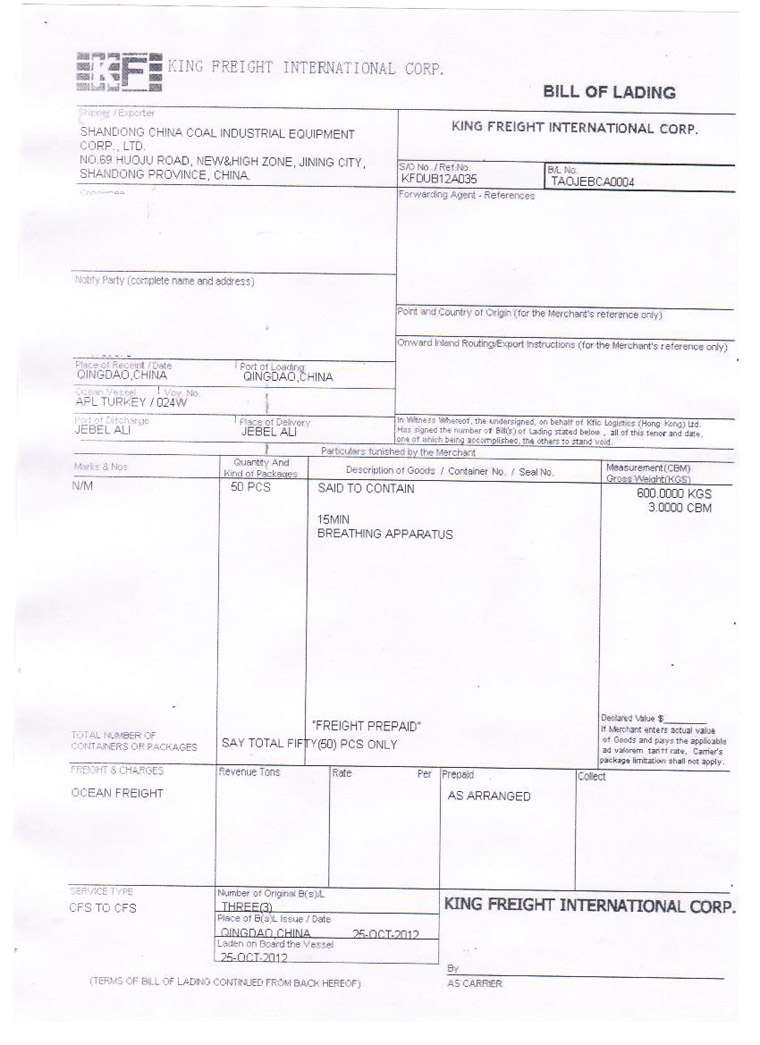

B/L of The History Trading
