STS-750L Total Station

Super large LCD displayAbsolute encoding systemHigh performance? CPUUpgraded laser path systemAbundant surveying programs

Related Products

Product Introduction

Model: STS-750L
Production Introduction:
Super large LCD display
Absolute encoding system
High performance  CPU
Upgraded laser path system
Abundant surveying programs

Main Parameter


STS-752L

STS-755L

STS-752R6

STS-755R6

DISTANCE MEASUREMENT

single prism

5.0km

5.0km

reflectorless

-

600m

accuracy

with reflector: 2mm+2ppm; without reflector:

5mm+3ppm

reading

max: 99999999.999  min: 1mm

measuring time

fine: 1s; tracking: 0.5s

atmospheric refraction & earth curvation correction

manual input, auto correction

prism constant

manual input, auto correction

ANGLE MEASUREMENT

measuring method

absolute encoding

diameter of raster disk

79mm

minimum reading

1”/5” selectable

Accuracy

2”

5”

2”

5”

detection method

horizontal: dual      vertical: dual

TELESCOPE


erect

tube length

154mm

effective aperture

Telescope: 45mm;  EDM: 50mm

magnification

30X

field of view

1°30’

resolving power

3”

min. focusing distance

1m

AUTO VERTICAL COMPENSATOR

system

1-axis liquid-electric

2-axis liquid-electric

working range

±3’

accuracy

1”

LEVEL

plate vial

30”/2mm

circular vial

8’/2mm

OPTICAL PLUMMET


erect

magnification

3X

focusing range

0.5m ~ ∞

field of view

OTHER

display type

2 sides, alphanumeric keyboard

laser plummet

optional

water & dust proof

IP54

ON-BOARD BATTERY

type

rechargeable Ni-H battery

voltage

6V

operating time

8 hours

DIMENSION & WEIGHT

dimension

200 X 190 X 350mm

weight

6.0kg

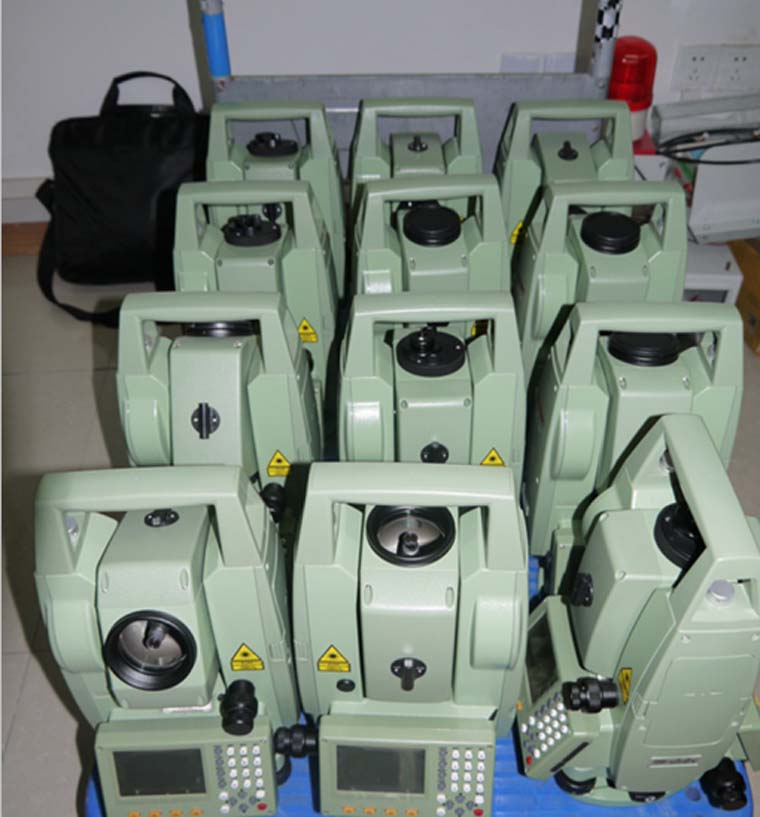

Figure Photos

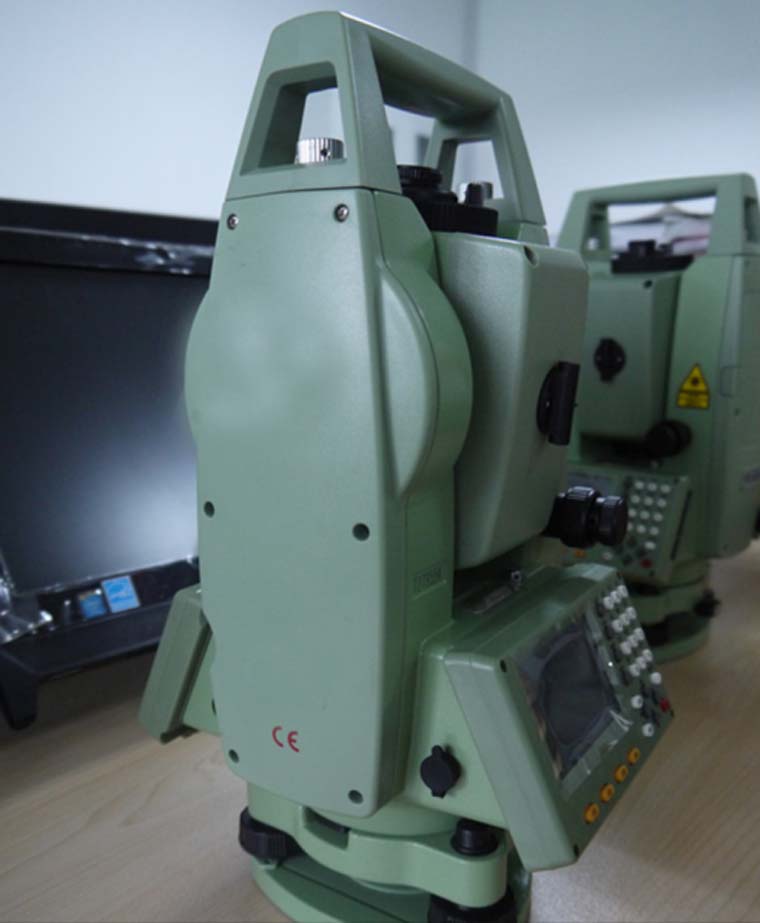

STS-750L Total stationSTS-750L Total station

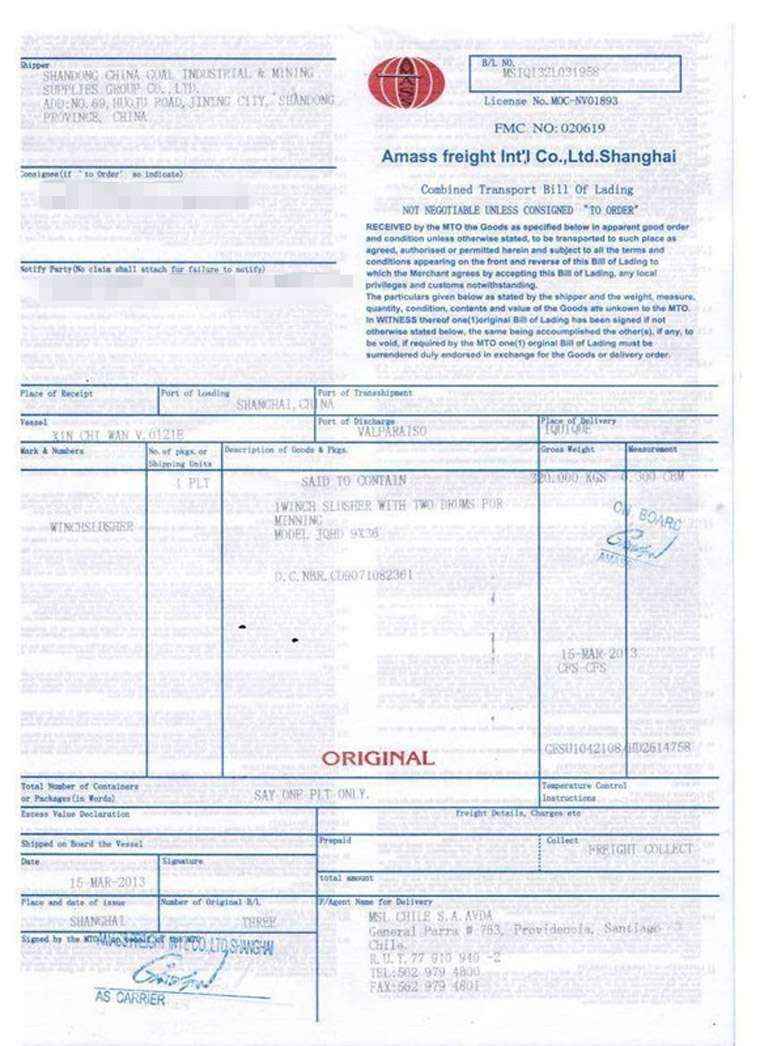

B/L of The History Trading

STS-750L Total station
