Internal Combustion Ballast Tamper

Internal Combustion Ballast Tamper is a railroad track bed for tamping operations twitter stone hand-held portable professional tools. With gasoline-powered source, through a centrifugal clutch, rubbe

Related Products

Introduction Of Internal Combustion Ballast Tamper

Internal Combustion Ballast Tamper is a railroad track bed for tamping operations twitter stone hand-held portable professional tools. With gasoline-powered source, through a centrifugal clutch, rubber shock absorbers, drag vibrators generate high frequency disturbance force, make the pillow under the stone can be compared to solid, in order to achieve the purpose of ballast stone ballast tamping. Machine design, compact structure, small size, light weight, high mobility, handle two damping, mobile, portable, easy up and down slopes, may not block line jobs, especially for turnouts, tunnels, bridges and culverts and other medium-sized road maintenance machinery can not track bed regional road maintenance work jobs.

Internal Combustion Ballast Tamper Maintenance Design

Using pneumatic piston internal combustion piston and cylinder mounted with the way, eliminating the need for a separate pneumatic piston lubrication system (generally starting piston lubrication system separately and periodically replenish lubricant).
The machine uses two-stroke gasoline-powered, eliminating from the structure and the oil pump intake and exhaust valves, and improve reliability. In order to improve two-stroke gasoline engine start-up performance; while the hammer and other components to provide lubrication in the cylinder two-stroke engine oil designed to discharge the channel, through lubricated slide hammer hammer. To make the oil flow smoothly slide hammer should the oil inside the cylinder channel port expansion is tapered so that the oil in the gas flow smoothly driven by the oil channels. The principle is: two-stroke gasoline engine hybrid oil lubrication, an appropriate increase in the proportion of the value of the oil, so that the combustion gas mixture in the cylinder, the remaining oil is not discharged from the exhaust pipe into the oil channel instead of the hammer exercise machine, etc. parts for lubrication, lubrication and maintenance can be at least minus two points.
Gasoline engine air filter does not use a paper filter must be changed frequently, should adopt the invasion of oil fiber sleeve type oil filter, from replacement.
Benefits Features: internal combustion tamping machine used in the field to solve a busy trunk tamping operation without reliable and efficient portable tamping machine-made problem, is to adapt to the actual work situation, combining maintenance and ease of use, and with extensive use and promotion prospects of a new generation of tamping machines.

Internal Combustion Ballast Tamper Technical Parameters

(1) Vibrator outer: 50mm
(2) Centrifugal force:4000N
(3) Vibration frequency: 158Hz
(4) Weight :15kg
(5) Dimension:1020×350×250mm

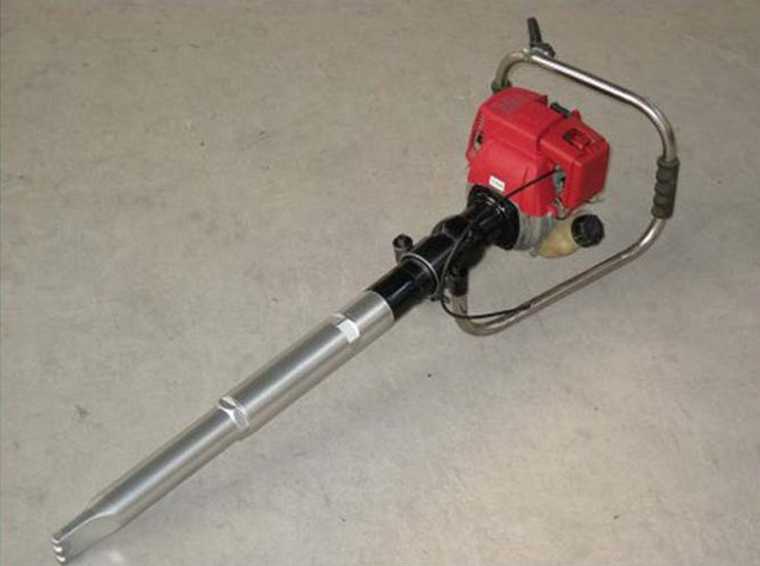

Pictures Of Internal Combustion Ballast Tamper

Internal Combustion Ballast TamperInternal Combustion Ballast Tamper
