Introduction of JZ-5/400 Mine Shaft Hoist Sinking Winch
JZ-5/400 Mine Shaft Hoist Sinking Winch for Ore Lifting And Down are used in coal mine, metal mine,
non-metallic mine for hanging the swaying tray, water pump, air compressor,
grouting tube, wind-cone and other excavation facilities, also can use for
hanging heavy loads on surface and underground.
mine winch with hydraulic thrust Failsafe brake for mine shaft lifting and pulling.
variable speed, local control and radio remote control.
Features of JZ-5/400 Mine Shaft Hoist Sinking Winch
1.set one/two hydraulic
thrust Failsafe brake and one hydraulic disk
drum brake,
2.compact in structure, easy to operation, safe and reliable.
frequency conversion and joystick
controller for speed control.
3. emergency stop, power failure safety brake, over
winding protection
Main Parameter of Mine Shaft Hoist Sinking Winch for Ore Lifting And Down
|
Model
|
JZ-5/400
|
JZA-5/600
|
JZ-10/800/1000
|
JZ-16/800
|
JZ-16/1000/1300
|
JZ-25/1300/1500
|
|
Maximum
Static Tension of Rope
|
5000KG
|
5000KG
|
10000KG
|
16000KG
|
16000KG
|
25000KG
|
|
Rope
Capacity
|
400M
|
600M
|
800/1000M
|
800M
|
800/1300M
|
1300/1500M
|
|
Mean Speed
of Rope
|
High Speed
|
6M/MIN
|
6M/MIN
|
6M/MIN
|
6M/MIN
|
6M/MIN
|
6M/MIN
|
|
Low Speed
|
3M/MIN
|
3M/MIN
|
3M/MIN
|
3M/MIN
|
3M/MIN
|
3M/MIN
|
|
Twisting
Layers
|
6 Layers
|
10 Layers
|
7 Layers
|
6 Layers
|
7 Layers
|
9 Layers
|
|
Rope
Diameter
|
23MM
|
23MM
|
31MM
|
40MM
|
40MM
|
52MM
|
|
Winding
Drum
|
Diameter
|
400MM
|
400MM
|
800MM
|
1000MM
|
1000MM
|
1050MM
|
|
Width
|
900MM
|
1000MM
|
1050MM
|
1400MM
|
1400MM
|
1560MM
|
|
Center
Height
|
650MM
|
580MM
|
800MM
|
1050MM
|
1050MM
|
1250MM
|
|
Speed Ratio
|
Reducer
|
High Speed
|
50
|
50
|
63.5
|
77
|
77
|
77
|
|
Low Speed
|
100
|
100
|
127
|
154
|
154
|
154
|
|
Overall
gear ratio
|
High Speed
|
252.5
|
252.5
|
388
|
506.6
|
506.6
|
506.6
|
|
Low Speed
|
505
|
505
|
776
|
1013.2
|
1013.2
|
1013.2
|
|
Motor
|
Model
|
Y160L-6
|
Y160L-6
|
Y200L2-6
|
YR250M1-8
|
YR250M1-8
|
YZR280M-8
|
|
Power
|
11KW
|
11KW
|
22KW
|
30KW
|
30KW
|
55KW
|
|
Rotate
Speed
|
970 Rp/M
|
950 Rp/M
|
970 Rp/M
|
720 Rp/M
|
720 Rp/M
|
728 Rp/M
|
|
Voltage
|
380V
|
380V
|
380V
|
380V
|
380V
|
380V
|

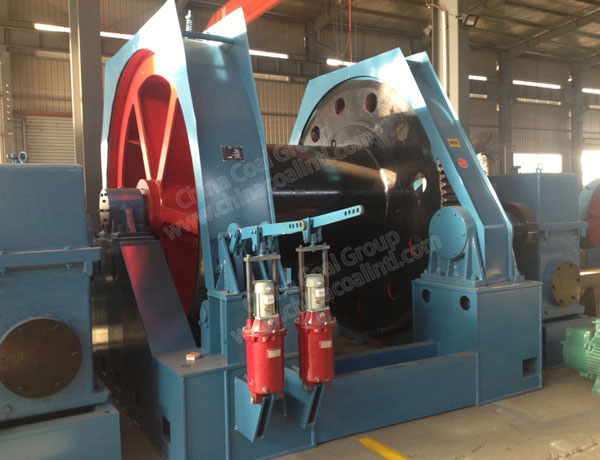

Images of JZ-5/400 Mine Shaft Hoist Sinking Winch
