YT23 Portable Handheld Pneumatic Air Leg Rock Drill

The YT23 Portable Handheld Pneumatic Air Leg Rock Drill is machine is a kind of high efficiency hand hole or air leg support rock drill machinery which mainly used for blasting holes and other drillin

Related Products

Introduction of YT23 Portable Handheld Pneumatic Air Leg Rock Drill

The YT23 Portable Handheld Pneumatic Air Leg Rock Drill is machine is a kind of high efficiency hand hole or air leg support rock drill machinery which mainly used for blasting holes and other drilling works in quarries, railway construction, water conservancy construction and defense project facility. machine is a kind of high efficiency hand hole or air leg support rock drill machinery. has many advantages, such as reasonable design, light weight, high efficiency, fast drilling velocity, low consumption convenient operation, low trouble rate, long life parts, and good economic effect.

Features of YT23 Portable Handheld Pneumatic Air Leg Rock Drill

1, YT23 Portable Handheld Pneumatic Air Leg Rock Drill is fit for wet drilling in medium-hard or hard rock.
2, Grouped control mechanism, quick to start up, with "air on ,water on, air off, water off" mechanism, convenient to handle and easy to maintain and repair.
3, Energy-saving and efficient, long service life of parts, parts highly interchangeable and reliable performance.

Advantages of YT23 Portable Handheld Pneumatic Air Leg Rock Drill

YT23 Portable Handheld Pneumatic Air Leg Rock Drill differs form similar products particularly in its high efficiency, strong flushing and powerful torque.
1. Scientific design, careful layout. Using modern design methods, optimize the performance of each product, all of the operating mechanism is arranged according to the principles of human engineering, to ensure that the products of high performance, high efficiency and convenient operation, safety.
2. High quality materials and scientific forging, embodies the "quality" concept, to ensure that the products of high strength, high wear resistance and impact resistance.
3. CNC Machine, Unicase automatic line heat treatment, given to "quality" and "hard" confidence.
4. By drilling machine computer control factory operating test bed, the dynamic characteristics of each product, avoid human errors occur, to ensure that the manufactured products of excellent quality and superior performance.

Parameter of YT23 Portable Handheld Pneumatic Air Leg Rock Drill

MODEL

Weight

Length

Cylinder DiaX stroke

Working pressure

Impact Energy

Impact Frequency

Air Consumption

KG

mm

mm

MPa

J

Hz

I/s

YO15

15

550

58×45

0.4-0.63

≥21

≥32

≤20

YO18

18

550

58×45

0.4-0.63

≥22

≥32

≤20

Y19A

19

600

65×54

0.4-0.3-63

≥28

≥28

≤37

YO20

20

561

63×55

0.4-0.63

≥26

≥33

≤33

Y26

26

650

65×70

0.4-0.63

≥30

≥23

≤47

YT23

24

628

76×60

0.4-0.63

≥65

≥37

≤78

YT23D

24

668

70×70

0.4-0.63

≥65

≥31

≤67

YT24

24

678

70×70

0.4-0.63

≥65

≥31

≤67

ZY24

25

690

70×70

0.4-0.63

≥65

≥30

≤67

YT28

26

661

60 ×60

0.4-0.63

≥70

≥37

≤81

MZ7665

26

720

76×70

0.4-0.63

≥70

≥37

≤81

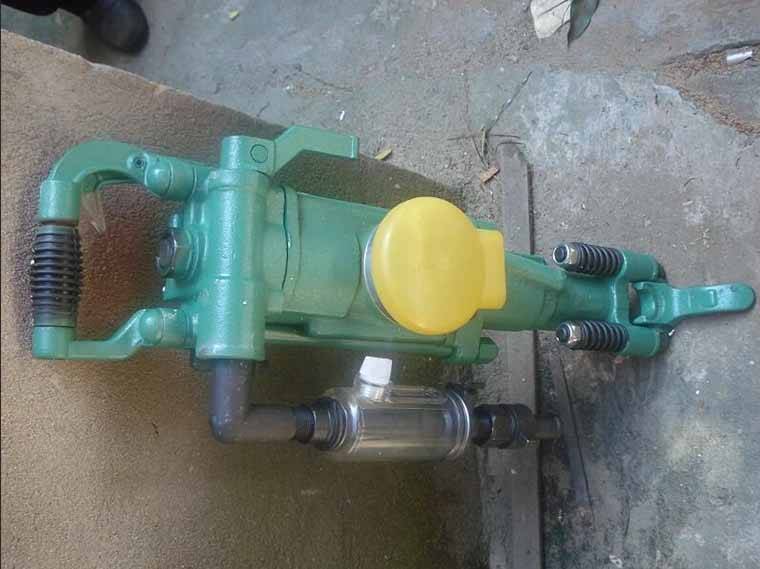

Images of YT23 Portable Handheld Pneumatic Air Leg Rock Drill

Air Leg Rock Drillpneumatic rock drill
