Introduction Of MDC5.5-9 Bottom Dump Mine Car
The bottom dump mine car is used in coal mine ground and underground roadway narrow gauge railway to transport coal or coal gangue of a vehicle. Most of the endless rope winch, or use electric locomotive driving, and its wide application in coal mine. It is the ideal equipment of the modern large and medium-sized coal mine coal transportation, has great capacity of transportation. The unloading efficiency is high, and it also can realize continuous loading, etc.
Main Advantages MDC5.5-9 Bottom Dump Mine Car
1.High reliability;
2. Long service time;
3. Low cost and easy operation;
4. Made by high quality steel;
5. High stress area welds eliminated;
6. Mass and section thickness optimized
7. Fast delivery.
Parameters Of MDC5.5-9 Bottom Dump Mine Car
|
Model
|
MDC3.3
-6
|
MDCC3.3
-6
|
MDC5.5
-9
|
MDCC5.5
-6
|
YDC2
-7
|
YDC4
-7
|
YDCC4
-7
|
YDC6
-7
|
YDCC6
-7
|
YDC6
-9
|
YDCC6
-9
|
|
Volume
(m3)
|
3.3
|
3.3
|
5.5
|
5.5
|
2
|
4
|
4
|
6
|
6
|
6
|
6
|
|
Carring Capacity
(T)
|
3
|
3
|
5
|
5
|
5
|
10
|
10
|
15
|
15
|
15
|
15
|
|
Track Gauge
(mm)
|
600
|
600
|
900
|
600
|
762
|
762
|
762
|
762
|
762
|
900
|
900
|
|
Length
(mm)
|
3450
|
3450
|
4200
|
4200
|
3070
|
3900
|
3900
|
5400
|
5400
|
5400
|
5400
|
|
Width
(mm)
|
1200
|
1200
|
1520
|
1360
|
1420
|
1600
|
1600
|
1750
|
1750
|
1750
|
1750
|
|
Height
(mm)
|
1400
|
1400
|
1550
|
1600
|
1280
|
1600
|
1600
|
16950
|
1650
|
1650
|
1650
|
|
Wheelbase(
mm)
|
1100
|
1100
|
1350
|
1600
|
1000
|
1320
|
1320
|
2500
|
2500
|
2500
|
2500
|
|
Wheel Diameter
(mm)
|
350
|
350
|
400
|
400
|
400
|
450
|
450
|
400
|
400
|
400
|
400
|
|
Height of Traction(mm)
|
320
|
320
|
430
|
430
|
450
|
600
|
600
|
730
|
730
|
730
|
730
|
|
Traction(KN)
|
60
|
60
|
60
|
60
|
60
|
60
|
60
|
60
|
60
|
60
|
60
|
|
Unloading Angle(≥°)
|
50
|
50
|
50
|
50
|
50
|
50
|
50
|
50
|
50
|
50
|
50
|
|
Weight(kg)
|
1700
|
1700
|
3000
|
3000
|
2400
|
4320
|
4320
|
6320
|
6320
|
6380
|
6380
|

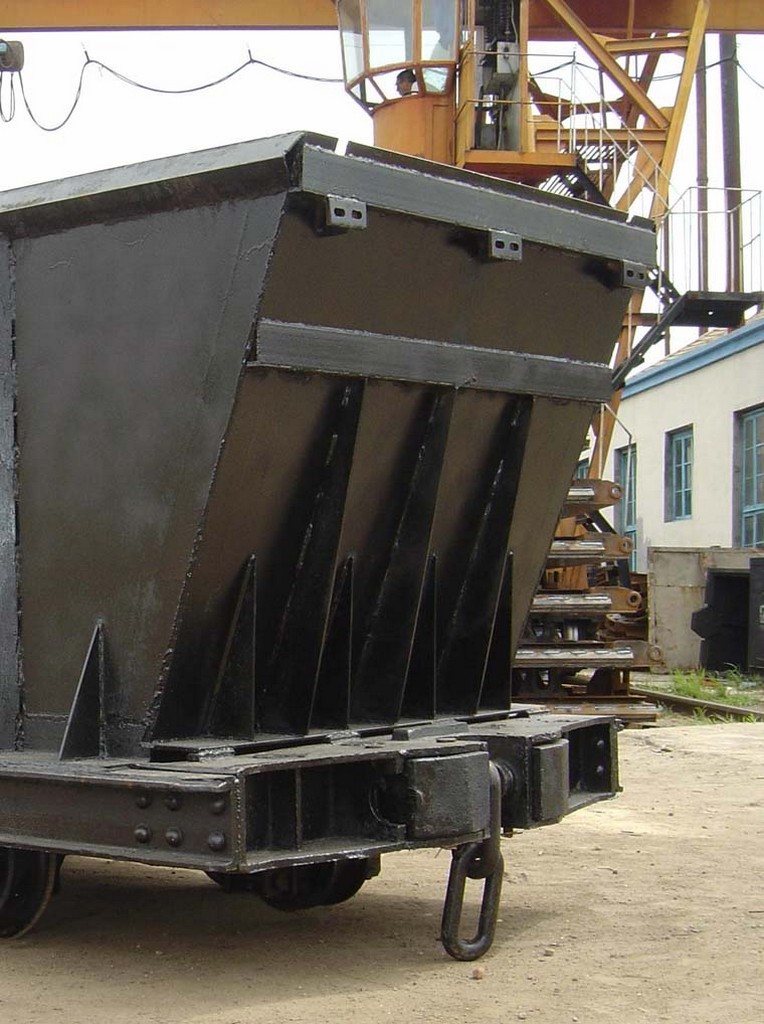

Pictures Of MDC5.5-9 Bottom Dump Mine Car
