Profile of Clamp
Clamp is the accessories used to connect the U channel support.. Clamp is made of Q235 and 16 Mn steel processing, Clamp model is divided into U25, U29, U36, and other specifications of U channel steel support
Characteristic of Clamp
Clamp with retractable and reliable carrying capacity to adapt soft rock load and deformation, high utilization section, bracket, branch back to the convenience, small amount of maintenance, support recovery reuse rate, reduce prop to use, environmentally friendly benefits are obvious.
Parameter of Clamp
|
Size
|
Material
|
Theoretical weight (kg/m)
|
cross-sectional area (cm2)
|
Height
|
Thickness
|
Width
|
Leg thickness
|
|
25U
|
Q275B/ 20Mnk
|
24.95
|
31.79
|
+1.0
120
-1.5
|
+0.5
15
-1.2
|
+1.0
130
-3.0
|
+0.8
6.3
-0.5
|
|
29U
|
Q275B/ 20Mnk
|
29.00
|
37.00
|
+1.0
124
-1.5
|
+0.5
16
-1.2
|
+1.0
150.5
-3.0
|
+0.8
7.2
-0.5
|
|
36U
|
20Mnk
|
35.87
|
45.70
|
+1.0
138
-1.5
|
+0.5
17
-1.2
|
+1.0
171
-3.0
|
+0.8
7.8
-0.5
|
|
40U
|
20Mnk
|
40.05
|
51.02
|
+1.0
149
-1.5
|
+0.5
20.2
-1.2
|
+1.0
171
-3.0
|
+0.8
8.5
-0.5
|

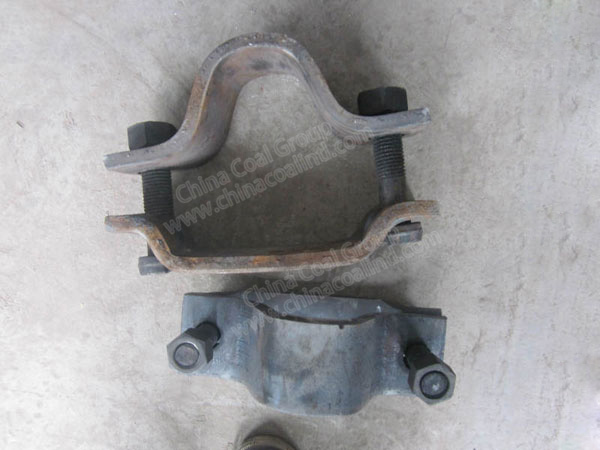

Photo of Clamp
